HWT-354V3-PP
HWT-354V3-PP
Category:

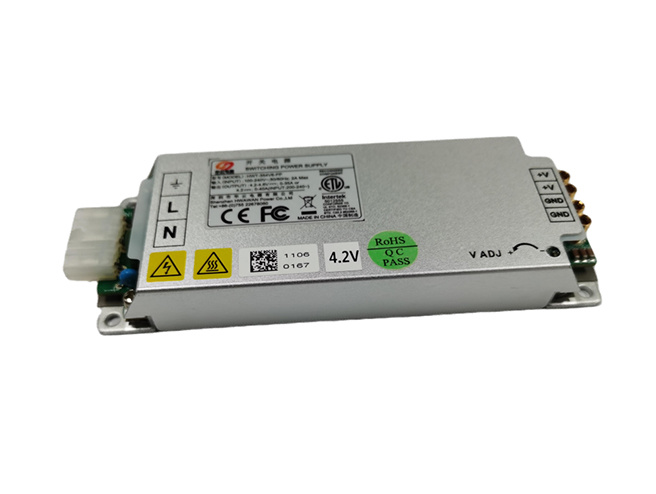

HWT-354V3-PP is an ultra-thin power supply specially designed for LED display products with rated output 4.3V/35A。 The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS
Small size：150mm*50mm*19mm(L*W*H)
Light weight : ≤210g
High efficiency：90%(@Input 220VAC,Output4.3V/35A)
Small Leakage current：<1mA
Output voltage can be adjusted from 3.8V to 4.3V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ℃~ +70℃ linear de-rating)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with UL, CE, CCC, FCC, ETL,CB certifications
