HWA804V3H-SP
HWA804V3H-SP
Category:

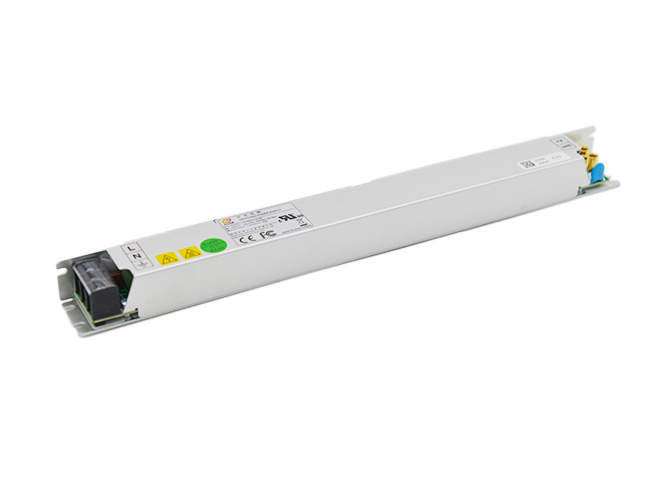

HWA804V3H-SP is an AC/DC output power product specially designed for LED display products, with rated output Output: 4.3V/80A, the power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS

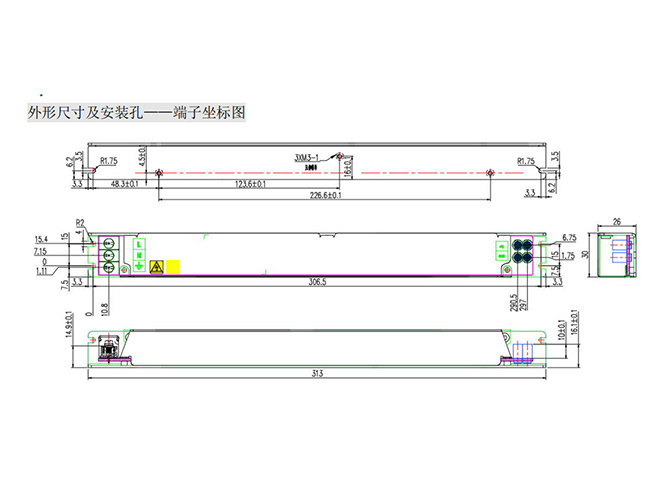

Small overall dimension: 313mm * 30mm * 26mm (L * W * H)
Light weight: ≤ 430g
High efficiency: 91% (@ 230VAC input, 4.3V/80A output)
Low leakage current:<1mA
Output voltage is adjustable from 3.8V to 4.3V
Conducted and radiated interference: EN55032 CLASS B
Wide operating temperature range: - 40~+70 ℃ (+50 ℃~+70 ℃ linear derating, refer to the derating curve (Figure 1))
Input voltage range: 90VAC~264VAC
Power factor: ≥ 0.95
Comply with UL, CE, FCC, CB certification
