HWA503V8-2S-SS
HWA503V8-2S-SS
Category:

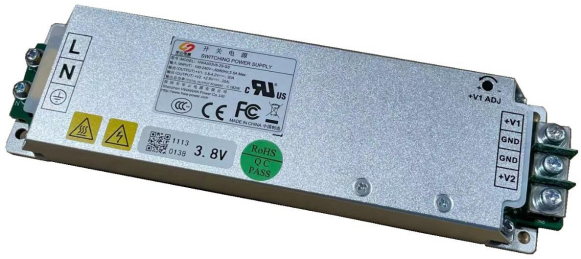

HWA503V8-2S-SS is a High-efficiency power supply with dual outputs (3.8V/30A, 2.8V/20A), designed for LED display products. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
Small size:182mm*50mm*21mm(L*W*H)
Light weight : ≤300g
High efficiency:88%(@Input: 220VAC, Outputs: full load )
Small Leakage current:<1mA
Output voltage +V1(3.8V) can be adjusted from 3.8V to 4.3V
Output voltage +V2 is 2.8V
EMI standard: EN55032 CLASS A
Wide operating temp. range:-40~+70(+50 ° C ~ +70 ° C linear de-rated)
Wide Input voltage range:90VAC~264VAC
Power factor:≥ 0.94
Compliance with UL, CE, FCC,CB certifications
