HWA804V6FA-B
HWA804V6FA-B
Category:

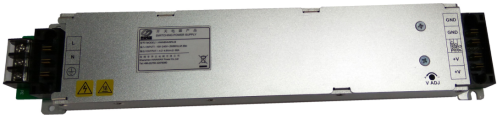

HWA804V6FA-B is a High-efficiency power supply with a rated output of 4.6V / 80A, designed for LED display products. The power supply has a current sharing function and can be used in parallel. The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS
Small size：284mm*57mm*26mm(L*W*H)
Light weight : ≤550g
High efficiency：89%(@Input 220VAC,Output4.6V/40-60A)
Small Leakage current：<1mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-25～+80℃(Shell temperature)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with UL, CE, CB,CCC certifications
