HWA805V0H-SP
HWA805V0H-SP
Category:

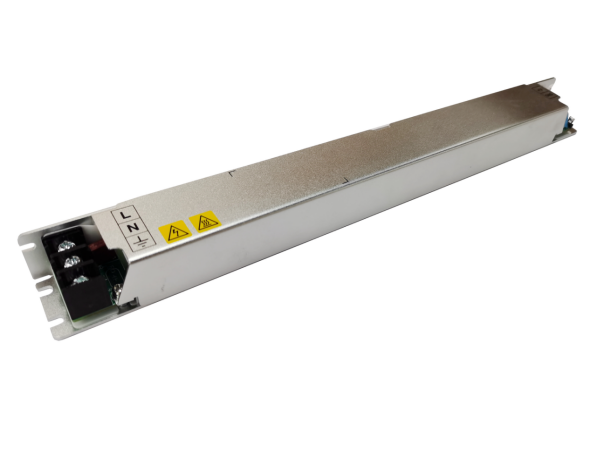

HWA805V0H-SP is an AC/DC output power product specially designed for LED display products, with rated output Output: 5.0V/80A, the power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
Light weight: ≤ 430g
High efficiency: 91% (@ 230VAC input, full load output)
Low leakage current:<1mA
The output voltage is adjustable from 4.6V to 5.0V
Conducted and radiated interference: EN55032 CLASS A
Wide operating temperature range: - 40~+70 ℃ (+50 ℃~+70 ℃ linear derating, refer to the derating curve (Figure 1))
Input voltage range: 90VAC~264VAC
Power factor: ≥ 0.95
Comply with UL, CE, FCC, CB certification
