HWA1003V8C-2S-SP
HWA1003V8C-2S-SP
Category:

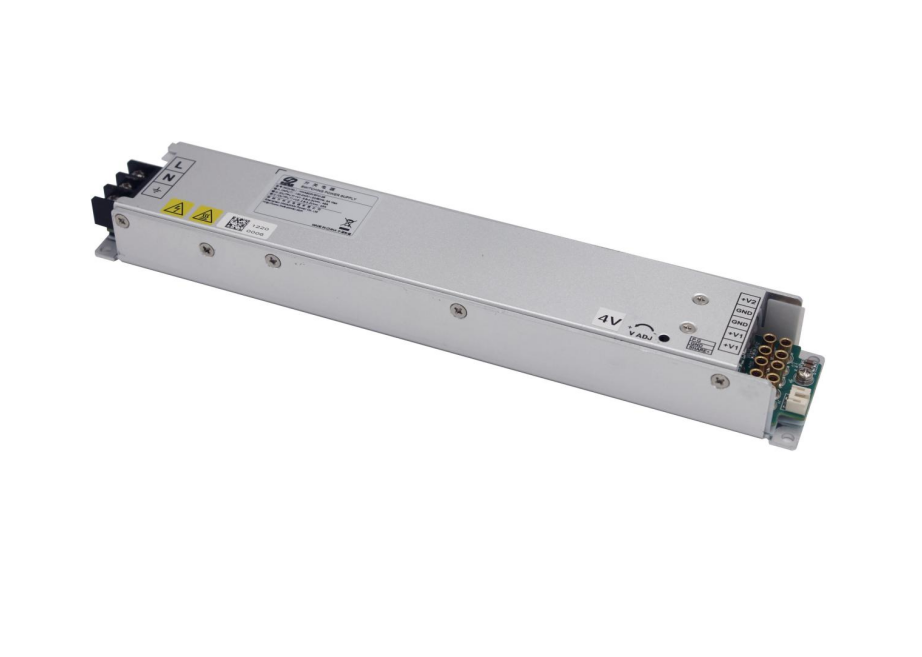

HWA1003V8C-2S-SP is an AC/DC dual-output power supply specially designed for LED display products, Rated output: 3.8V/60A, 2.8V/40A, the power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS

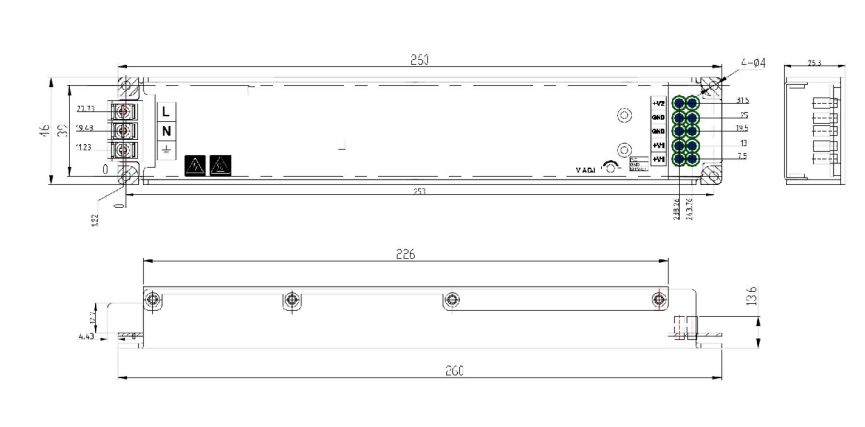

♦ Small overall dimension: 260mm * 46mm * 26.3mm (L * W * H)
♦ Light weight: ≤ 570g
♦ High efficiency: 89% (@ 220VAC input, full load output)
♦ Low leakage current:<1mA
♦+V1 output voltage is adjustable from 3.8V to 4.3V
♦ The output voltage of+V2 is adjustable from 2.8V to 3.2V (it is required to maintain a voltage difference of not less than 1V with+V1)
♦ Conducted and radiated interference: EN55032 CLASS A
♦ Wide working temperature range: - 40~+70 ℃ (+50 ℃~+70 ℃ linear derating, refer to the derating curve (Figure 1))
♦ Input voltage range: 90VAC~264VAC
♦ Power factor: ≥ 0.95
