HWA804V6J-SS
Category:

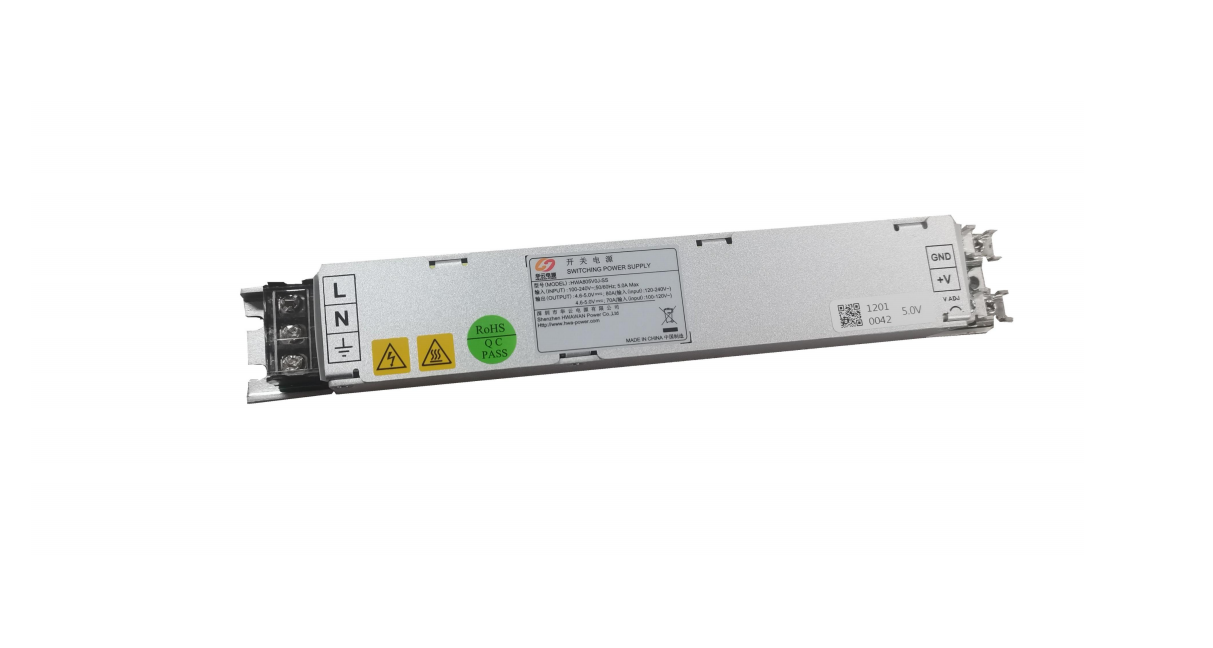

HWA804V6J-PP is a high-efficiency AC/DC power supply designed specifically for LED display products Product, rated output 4.2V/80A. This power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS

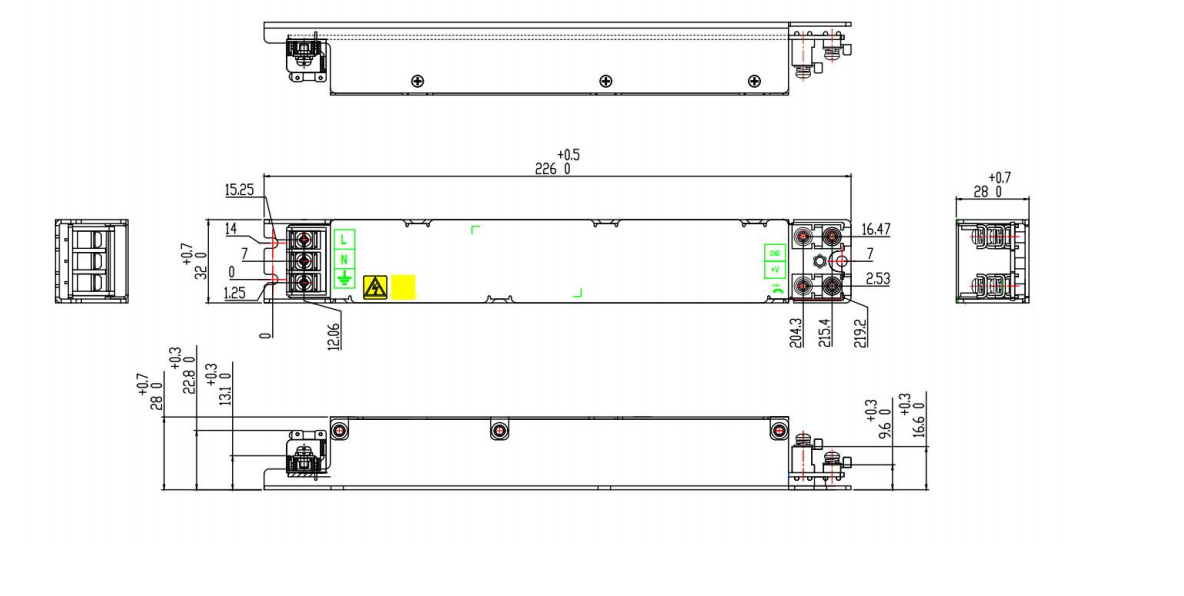

Small size：226mm*32mm*28mm(L*W*H)
Light weight : ≤330g
High efficiency：92.5%(@Input 230VAC,Output4.6V/80A)
Small Leakage current：<0.5mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ℃~ +70℃ linear de-rating)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with UL, CE, CCC, FCC,CB certifications
