HWA803V8K-2S-SS
Category:

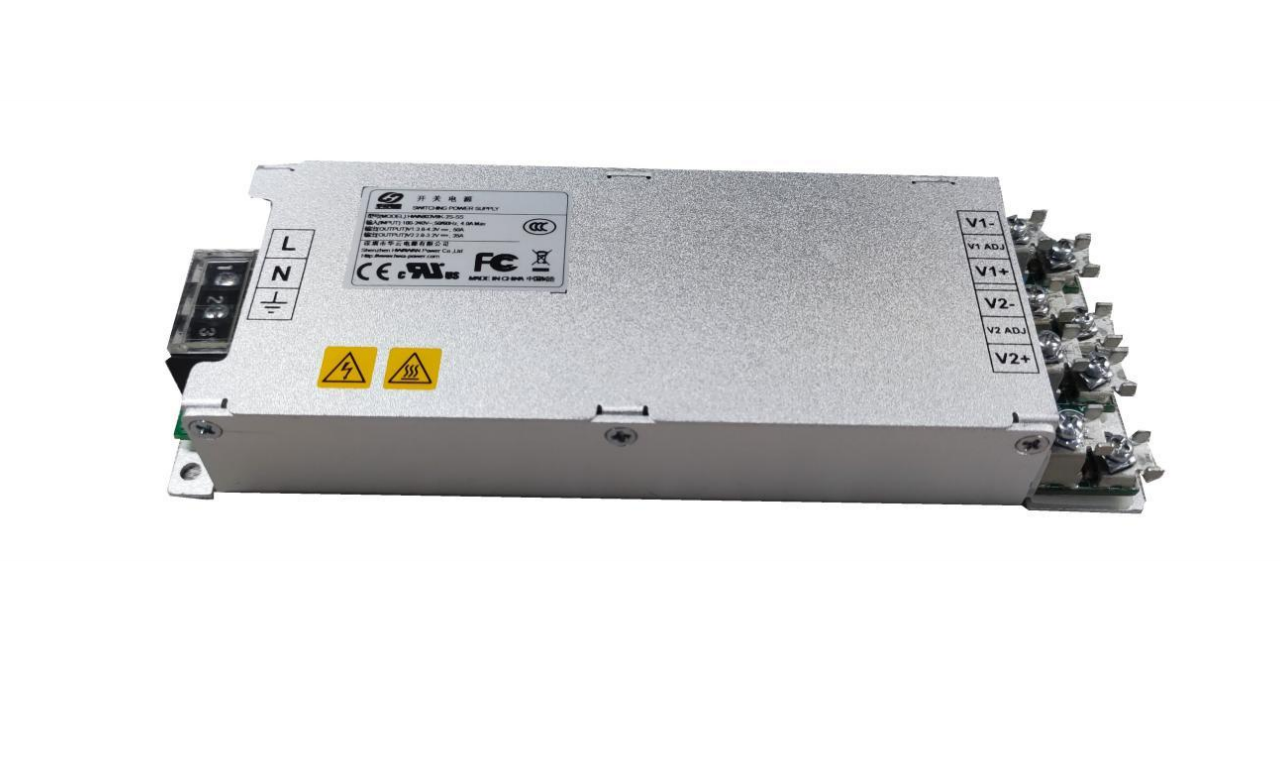

HWA803V8K-2S-SS is an AC/DC dual output power supply designed for LED display products Common cathode (V1+ separated from V2+, V1- shorted from V2-) and common anode (V1+ shorted from V2+, V1- separated from V2-) Two output modes; The rated output is V1:4.0V/50A, V2:3.0V/30A, the power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS

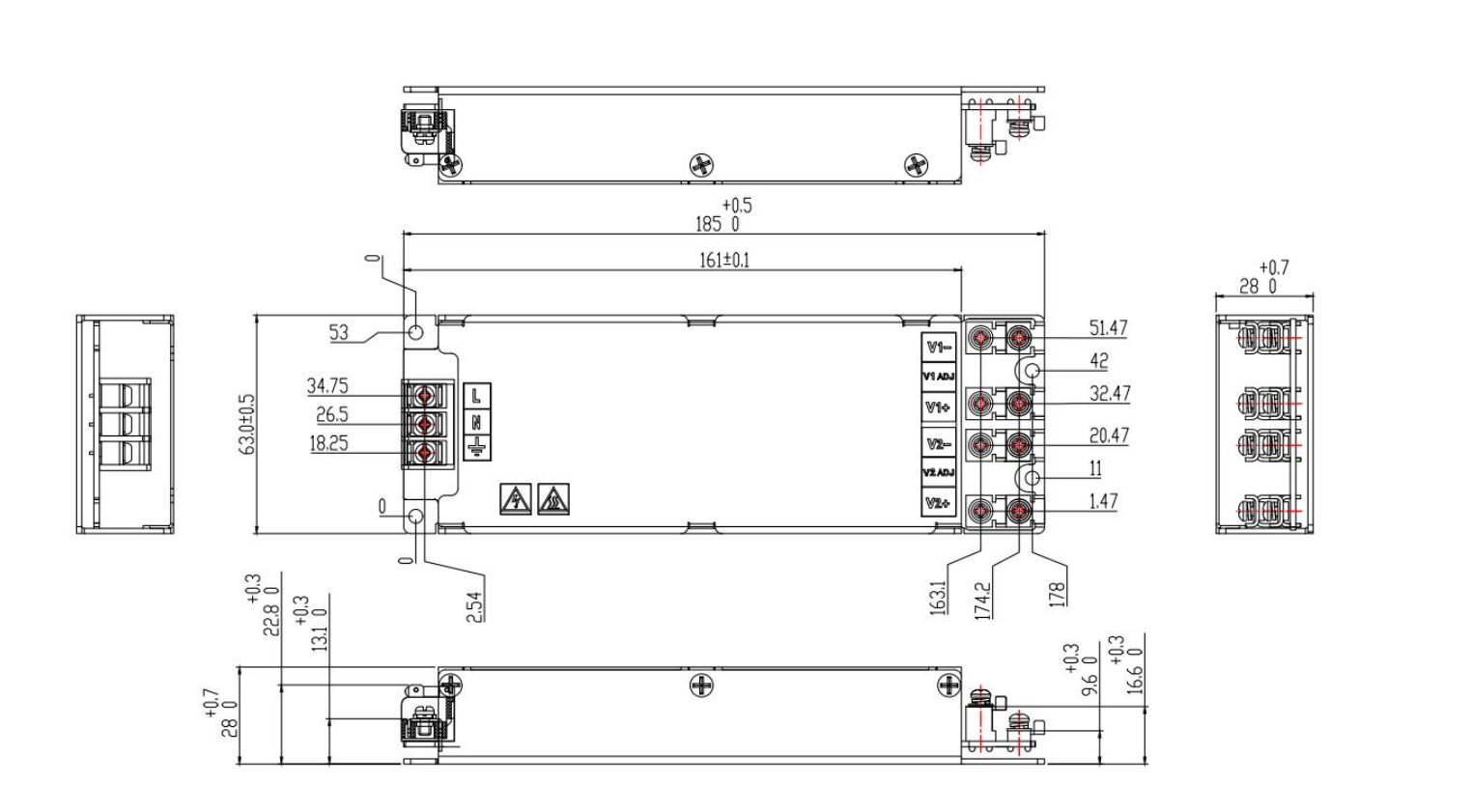

Small size：185mm*63mm*28mm(L*W*H)
Light weight : ≤540g
High efficiency：92%(@Input: 230VAC, Outputs: full load )
Small Leakage current：<0.5mA
Output voltage +V1 can be adjusted from 3.8V to 4.3V
Output voltage +V2 can be adjusted from 2.8V to 3.2V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50℃ ~ +70℃ linear de-rated)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with UL, CE, CCC, FCC certifications
