HWT-304V6-SP
HWT-304V6-SP
Category:
HWT-304V6-SP is a High-efficiency power supply with a rated output of 4.6V/ 30 A, designed for LED display products. The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS

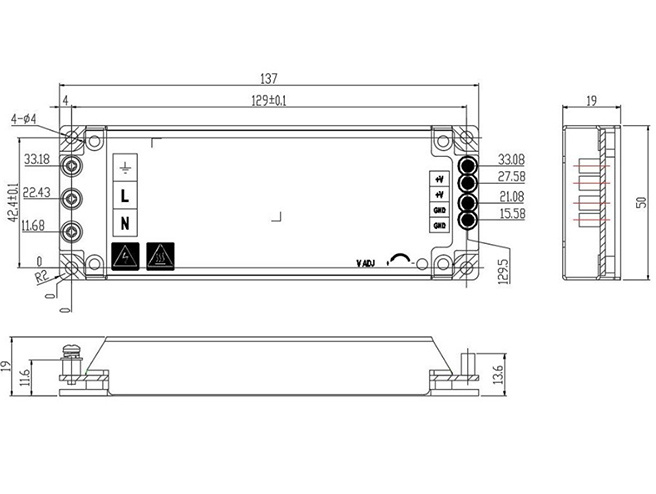

Small size：137mm*50mm*19mm(L*W*H)
Light weight : ≤210g
High efficiency：92%(@Input 230VAC,Output4.6V/30A)
Small Leakage current：<1mA(typ.@240VAC)
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ℃~ +70℃ linear de-rating)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with UL, CE, CCC, FCC, ETL,CB certifications
