HWA405V0FA
HWA405V0FA
Category:
HWA405V0FA is specially designed for LED display products, with output current sharing function AC/DC power supply products for parallel operation, with rated output of 5V/40A. The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS
The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status ofthe power supply

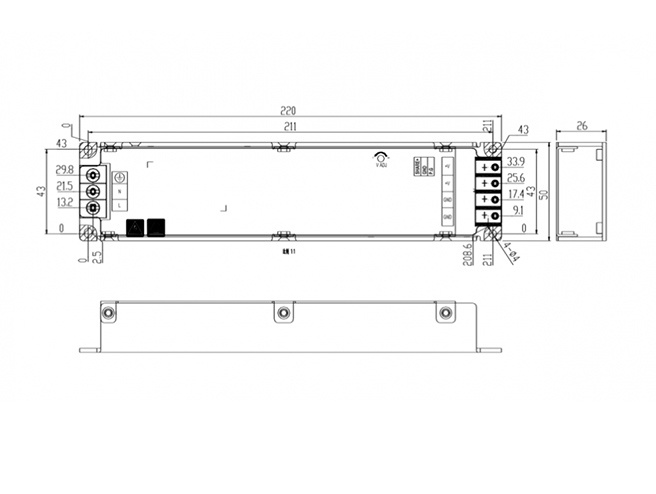

Small size：220mm*50mm*26mm(L*W*H)
Light weight : 390g
High efficiency：90%(@Input 220VAC,Output5.0V/30A)
Small Leakage current：<1mA
Output voltage can be adjusted from 4.5V to 5.0V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+80℃(Case temperature)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with UL, CE, CB certifications
