HWA604V6D-SP
HWA604V6D-SP
Category:
HWA604V6D-SP is a High-efficiency power supply with a rated output of 4.6V / 60 A, designed for LED display products. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS

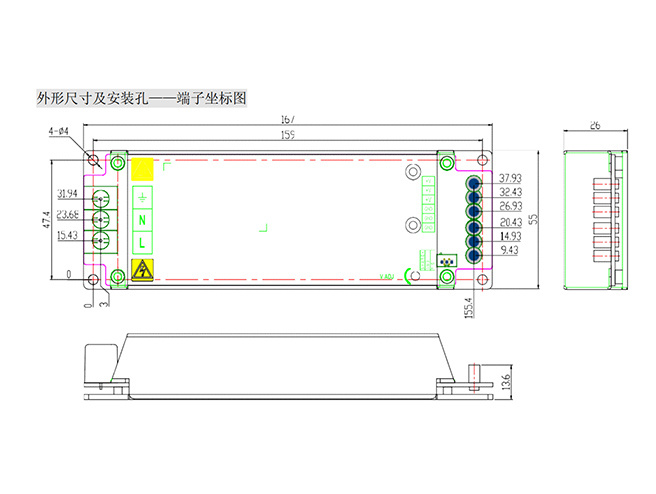

Small size：167mm*55mm*26mm(L*W*H)
Light weight : ≤350g
High efficiency：91.5% Max(referring to fig .3)
Small Leakage current：< 1mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40~+70C(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC~264VAC
Power factor： ≥0.94
Compliance with UL, CE, CCC, FCC,CB certifications
