HWA605V0FA
HWA605V0FA
Category:

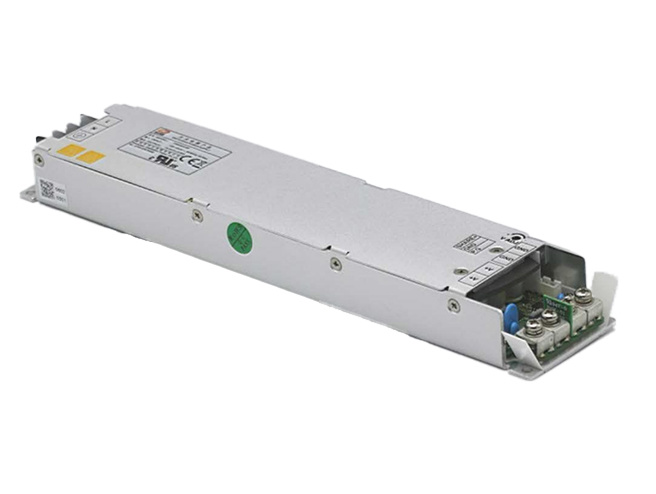

HWA605VOFA is an AC/DC power supply product specially designed for LED display products, with output current sharing function, which can be used in parallel, with rated output of 5V/60A. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
With functions of output flow, through the bus current can be realized in parallel.
Has the Power Good signal side, the Power supply working status can be judged through Power Good signal
High efficiency：89.5%(@Input 220VAC,Output5.0V/40A)

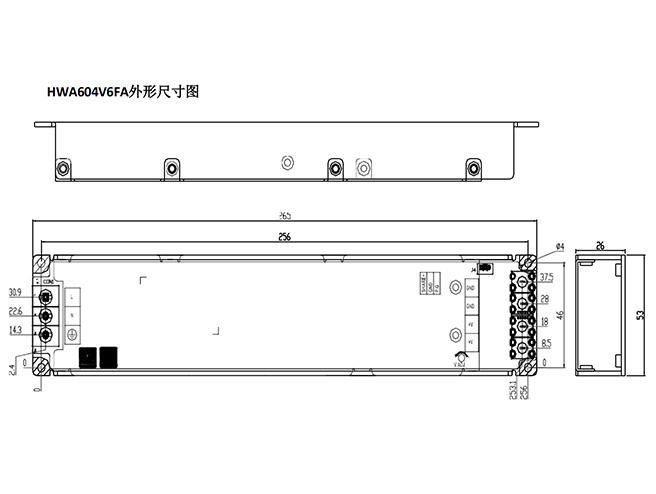

Small size ：250mm*53mm*26mm((L*W*H)
Light weight : ≤530g
Small Leakage current：<1mA
EMI standard: EN55032 CLASS A
Output voltage can be adjusted from 4.2V to4.6V
Wide operating temp. range：-25~+80C(temp. of case)
Input voltage range ：90VAC~264VAC
Power factor correction: ≥0.95
Comply with CCC、CB、UL and CE certification
