HWA604V3D-SP
HWA604V3D-SP
Category:

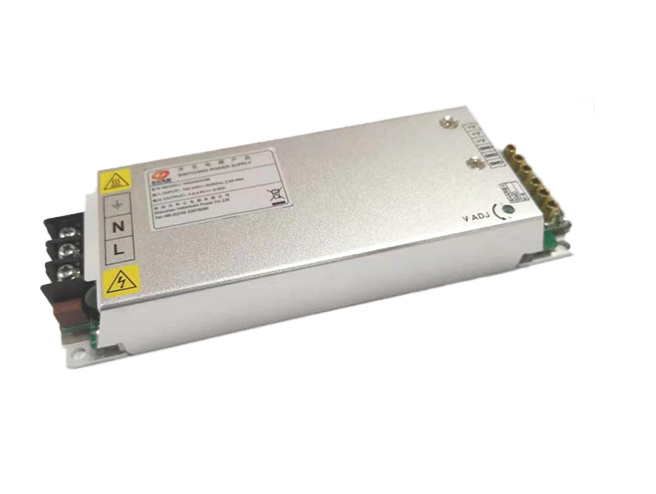

HWA604V3D-SP is a High-efficiency power supply with a rated output of 4.3V / 60A, designed for LED display products. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
Small size：167mm*55mm*26mm(L*W*H)
Light weight : 350g
High efficiency：91.6%( Referring to fig. 3)
Small Leakage current：<1mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50 ℃~ +70℃ linear de-rating)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.94
Compliance with UL, CE, CCC, FCC,CB certifications
