HWA804V6C-M
HWA804V6C-M
Category:
HWA804V6C-M is a High-efficiency power supply with a rated output of 4.6V / 80 A, designed for LED display products. The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS

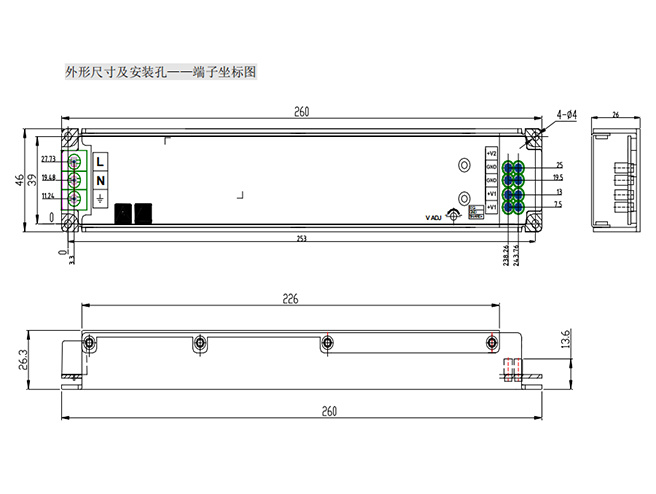

Small size：246mm*46mm*26mm(L*W*H)
Light weight : ≤510g
High efficiency：92%(@Input 220VAC,Output4.6V/80A)
Small Leakage current：<1mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with UL, CE, FCC,CB certifications
