HWA804V6E-SP
HWA804V6E-SP
Category:
HWA804V6E-SP is a high-efficiency AC/DC power supply specially designed for LED display products Product, rated output 4.6V/80A. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS

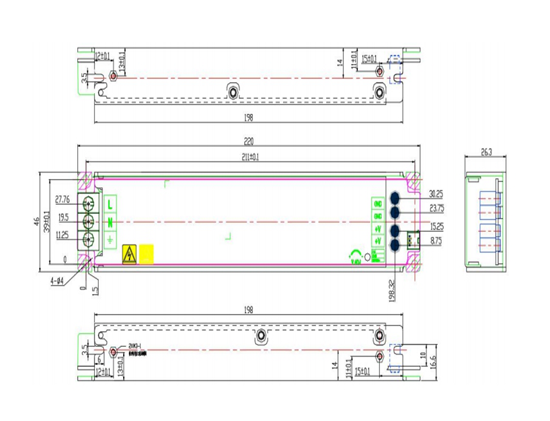

Small size：220mm*46mm*26mm(L*W*H)
Light weight : ≤470g
High efficiency：92%(@Input 230VAC,Output4.6V/80A)
Small Leakage current：<1mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC～264VAC（90VAC~176VAC derating to 50%）
Power factor： ≥0.95
Compliance with CCC、CE certifications
