HWT-403V8-2S-PS
HWT-403V8-2S-PS
Category:

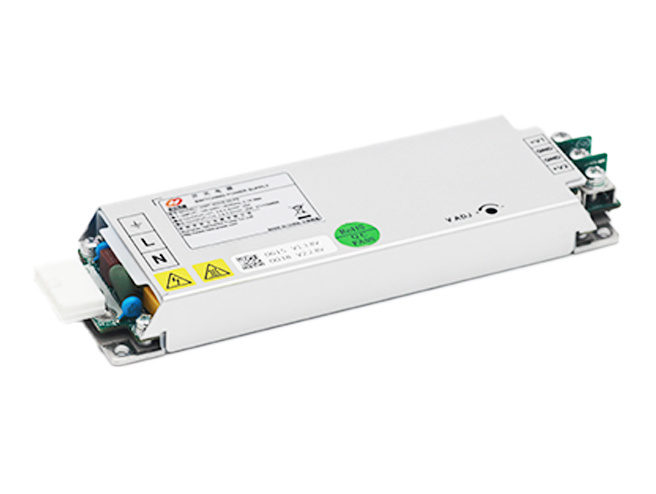

HWT-403V8-2S-PS is an AC/DC dual output power supply product designed for LED display products, The rated output is+V1: 3.8V/20A,+V2: 2.8V/20A. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS

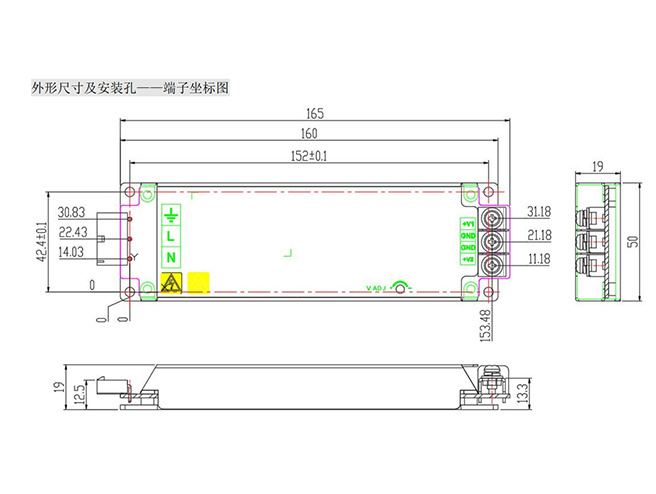

Small size：165mm*50mm*19mm(L*W*H)
Light weight : ≤250g
High efficiency：89% (@220Vac Input,Full load)
Small Leakage current：<1mA
Output voltage +V1 range:3.8V~4.3V
Output voltage +V2 range :2.8V~3. 2V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rated)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with UL, CE, CCC, CB certifications
