HWA903V8-2S
HWA903V8-2S
Category:

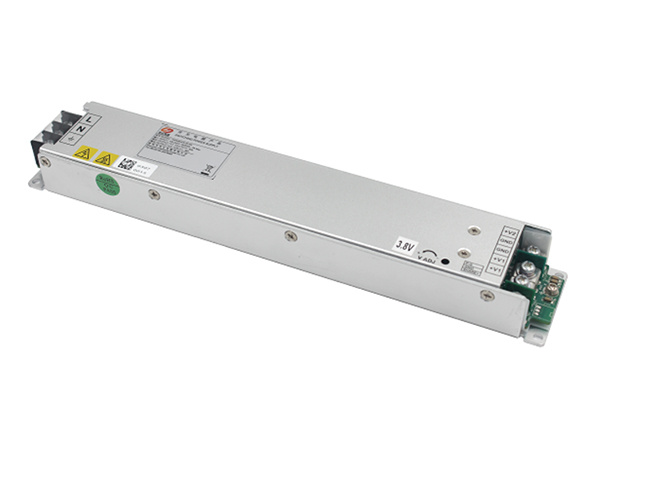

HWA903V8-2S is a High-efficiency power supply with dual outputs (3.8V/55A, 2.8V/35A), designed for LED display products. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
◆ Small size：260mm*46mm*26mm(L*W*H)
◆ Light weight : ≤550g
◆ High efficiency：89%(@Input: 230VAC, Outputs: full load )
◆ Small Leakage current：1mA
◆ Output voltage +V1(3.8V) can be adjusted from 3.8V to 4.3V
◆ Output voltage +V2 is 2.8V
◆ EMI standard: EN55032 CLASS A
◆ Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rated)
◆ Wide Input voltage range：90VAC～264VAC
◆ Power factor： ≥0.95
◆ Compliance with UL, CE, FCC, CB certifications
