HWT-354V6F-SS
HWT-354V6F-SS
Category:
HWT-354V6F-SS is a High-efficiency power supply designed for LED display products, with a rated output of 4.6V / 35A. The power supply has a current sharing function and can be used in parallel.The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS
The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status of the power supply

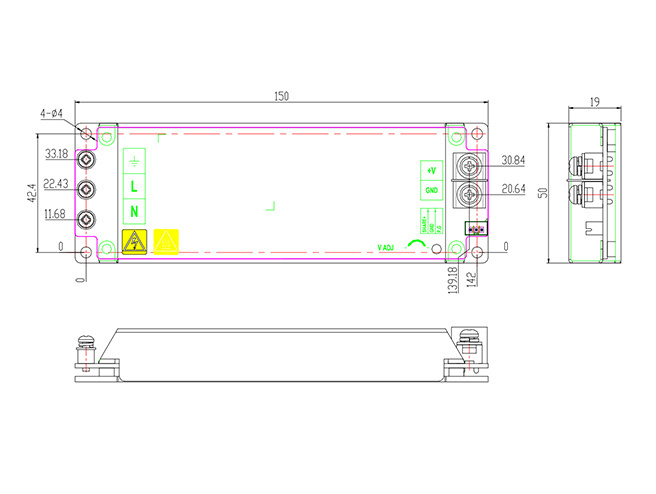

Small size：150mm*50mm*19mm(L*W*H)
Light weight : ≤210g
High efficiency：92%( Input :@230VAC，Output :4.6V/35A)
Small Leakage current：≤0.5mA(Iuput voltage264V ,50HZ)
Output voltage can be adjusted from 4.2V to 4.6V
Input voltage 200VAC~240VAC, output 4.2V/40A
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with ETL,CB, CE, FCC ,UL,CCCcertifications
