HWT-354V3-PS
HWT-354V3-PS
Category:

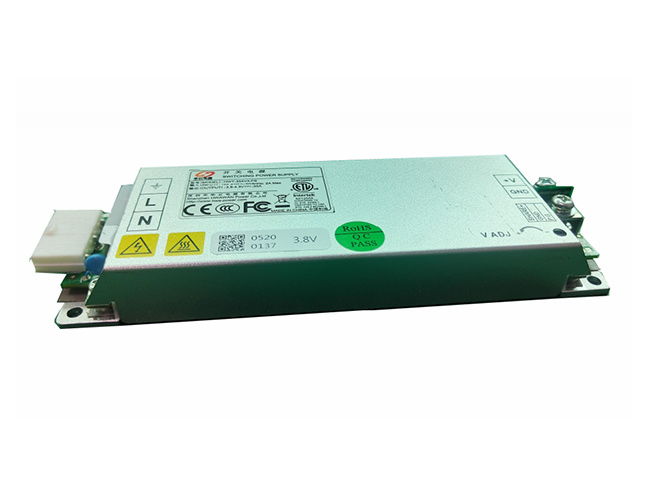

HWT-354V3-PS is a High-efficiency power supply with a rated output of 4.3V /35A, designed for LED display products. The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS

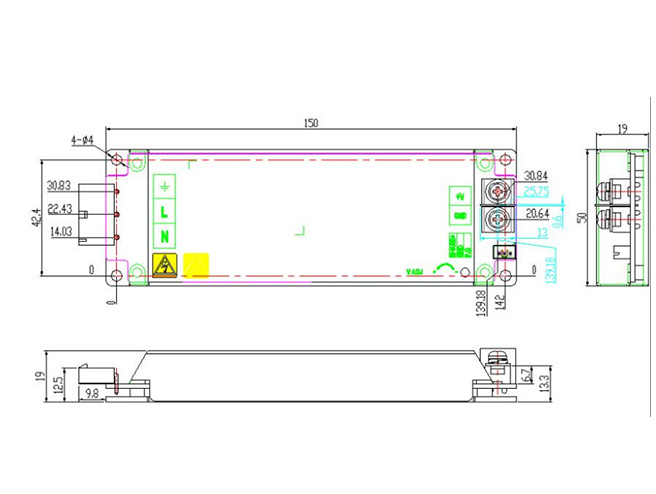

Small size：150mm*50mm*19mm(L*W*H)
Light weight : 210g
High efficiency：90%(@Input 220VAC,Output4.3V/35A)
Small Leakage current：<1mA
Output voltage can be adjusted from 3.8V to 4.3V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ℃~ +70℃ linear de-rating, referring to fig. 1)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with UL,CCC, CE, FCC, ETL,CB certifications
