HWA537V5FE-SS
Category:

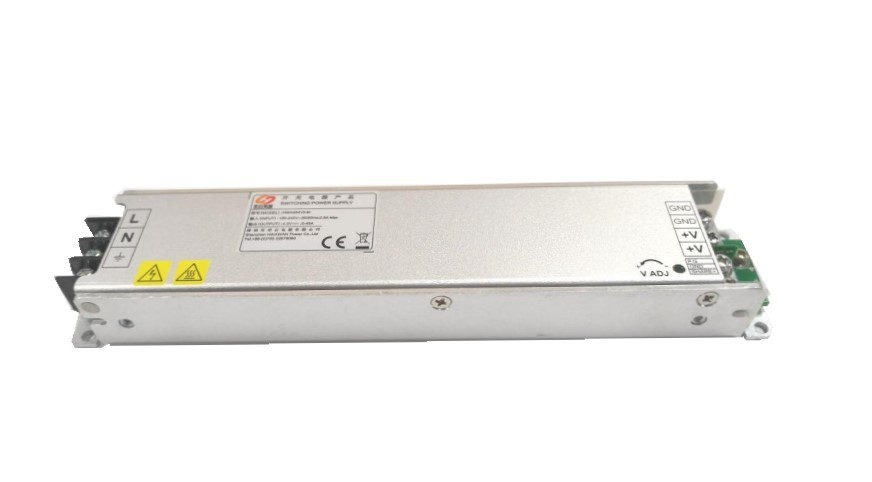

HWA537V5FE-SS is a High-efficiency power supply with a rated output of 7.5V / 53 A, designed for LED display products.The power supply has a current sharing function and can be used in parallel.The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status of
the power supply

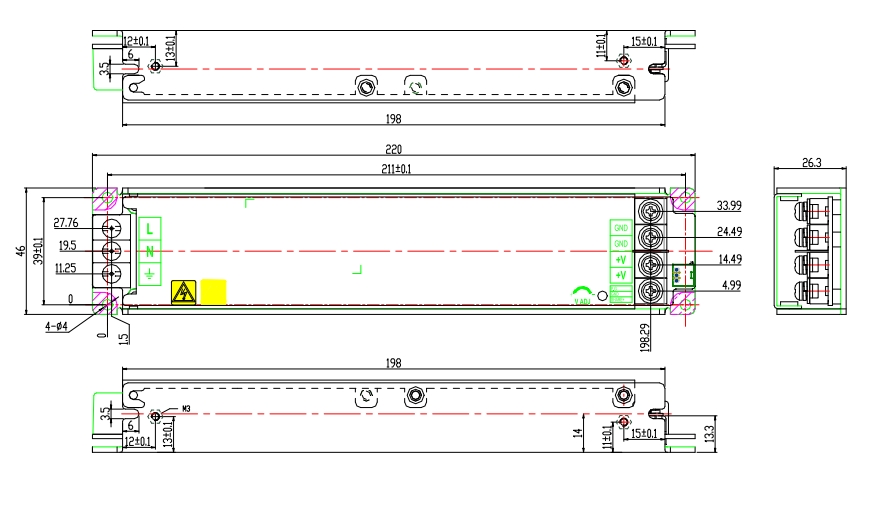

Small size:220mm*46mm*26mm(L*W*H) Light weight : 470g
High efficiency:91.5%(@Input 230VAC,Output 7.5V/53A)
Small Leakage current：<1mA
Output voltage :7.5V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50 ℃~ +70℃ linear de-rating)
Wide Input voltage range：180VAC～264VAC
Power factor： ≥0.95
Compliance with CE, CCC certifications
