HWA404V6FC
HWA404V6FC
Category:
HWA404V6FC is a High-efficiency power supply designed for LED display products, with a rated output of 4.6V / 40A. The power supply has a current sharing function and can be used in parallel. The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS
The power supply has a current sharing function and can be used in parallel

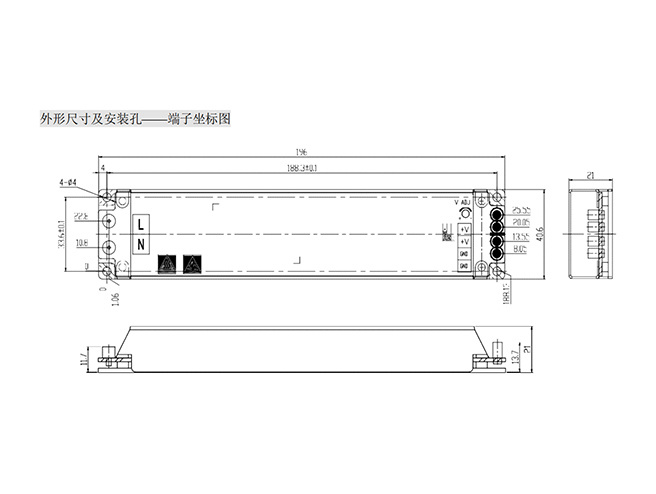

Small size：196mm*40.6mm*21mm(L*W*H)
Light weight : ≤255g
High efficiency：90%( Input :@230VAC ，Output :4.6V/40A)
Small Leakage current：< 1mA(typ.@240VAC)
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40~+70C(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC~264VAC
Power factor： ≥0.95
Compliance with UL, CE, FCC,CB,CCC certifications
