HWA504V6B
HWA504V6B
Category:

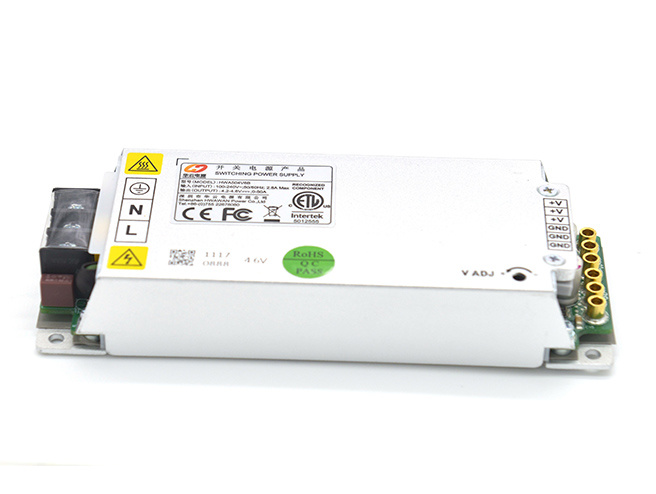

HWA504V6B is a High-efficiency power supply designed for LED display products, with a rated output of 4.6V / 50A. The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS
Small size：146mm*55mm*26mm(L*W*H)
Light weight : ≤310g
High efficiency：92%( Input :@220VAC，Output :4.2V/50A)
Small Leakage current：<1mA(typ.@240VAC)
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with CE, FCC ,ETLcertifications
