HWT-454V6
HWT-454V6
Category:
HWT-454V6 is an ultra-thin power supply designed for LED display products, rated output of 4.6V / 45 A.The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS

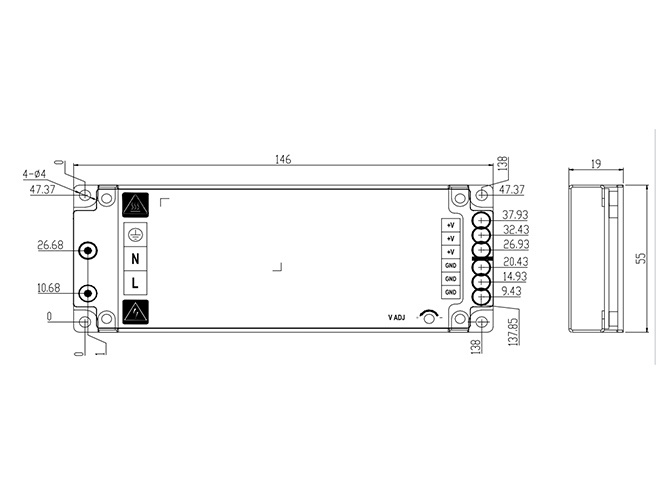

Small size：146mm*55mm*19mm(L*W*H)
Light weight : ≤255g
High efficiency：92%(@Input 220VAC,Output4.6V/45A)
Small Leakage current：1mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with CE, FCC, ETL,CB,CCC,UL certifications
