HWT-454V2F-SS
HWT-454V2F-SS
Category:

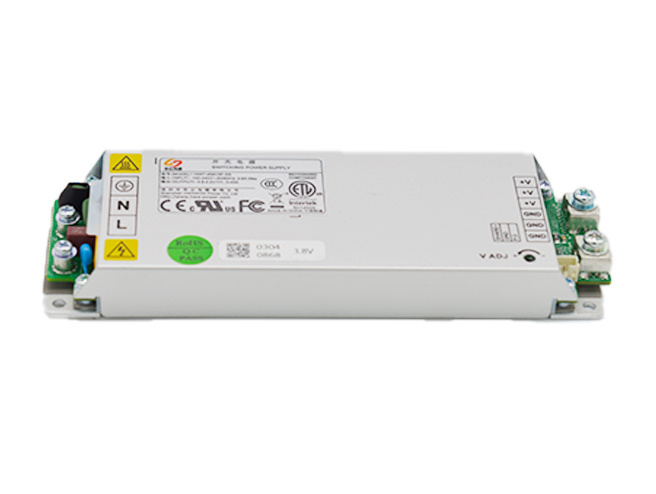

HWT-454V2F-SS is a High-efficiency power supply with a rated output of 4.2V / 45 A, designed for LED display products.The power supply has a current sharing function and can be used in parallel. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status of the power supply

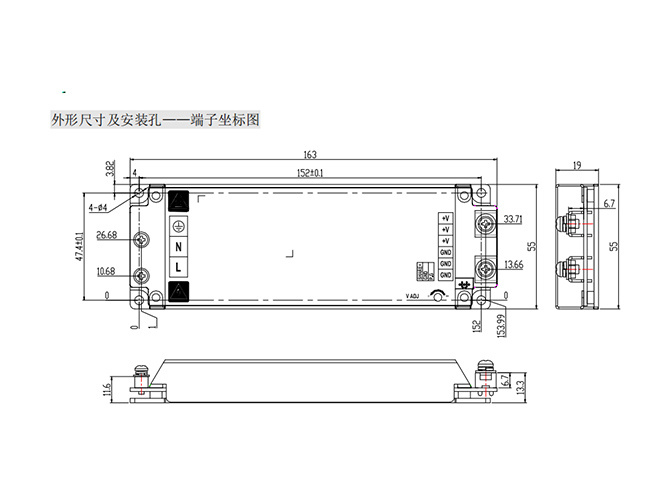

Small size：163mm*55mm*19mm(L*W*H) Light weight : ≤270g
High efficiency：90%(@Input 230VAC,Output4.2V/45A)
Small Leakage current：1mA
Output voltage can be adjusted from 3.8V to 4.2V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with CE、CB、FCC、ETL、CCC、ULcertifications
