HWA604V6FD-SS
HWA604V6FD-SS
Category:

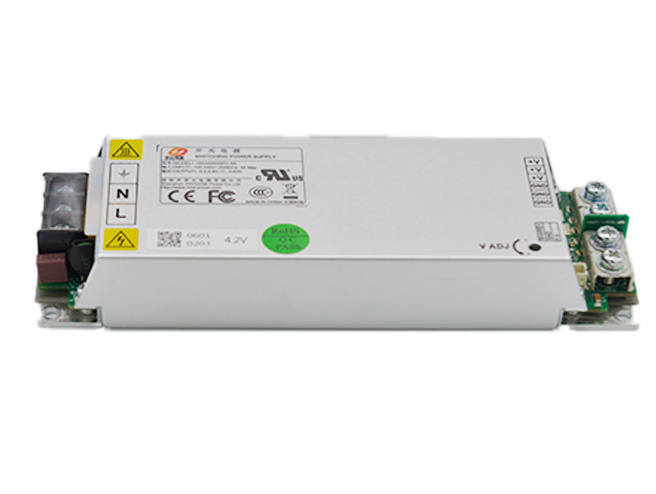

HWA604V6FD-SS is an AC/DC power supply product specially designed for LED display products, with output current sharing function, and can be used in parallel, with rated output of 4.6V/60A. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status of the power
supply

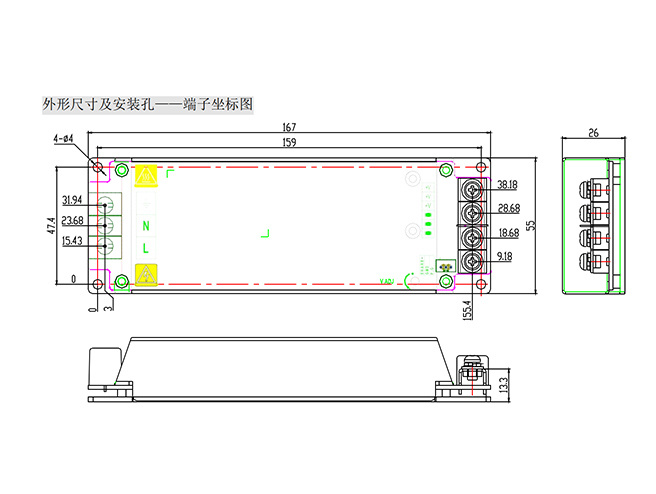

Small size：167mm*55mm*26mm(L*W*H)
Light weight : ≤350g
High efficiency：91%Max (referring to fig.3)
Small Leakage current：＜1mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40~+70C(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC~264VAC
Power factor： ≥0.94
Compliance with UL, CE, CCC, FCC,CB certifications
