HWA805V0G-SS
HWA805V0G-SS
Category:

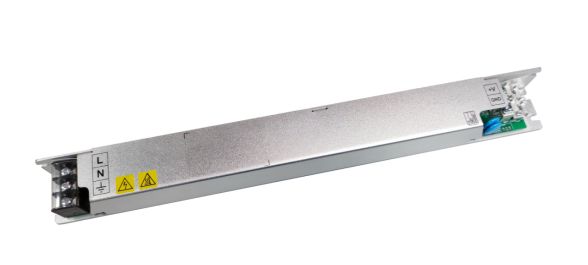

HWA805V0G-SS is a High-efficiency power supply with a rated output of 5.0V / 80 A, designed for LED display products. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS

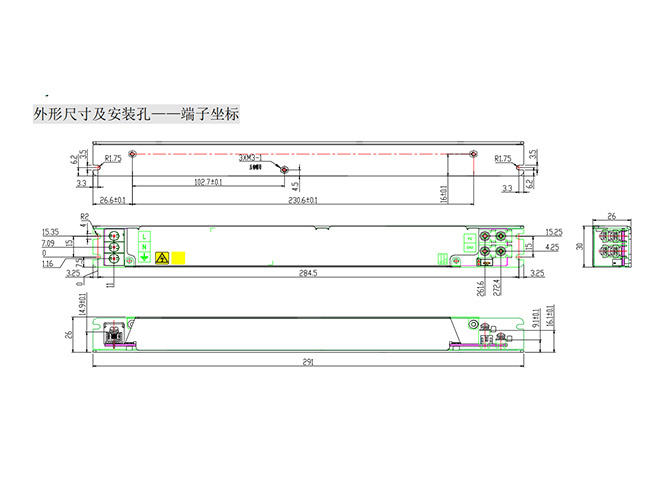

Small size：291mm*30mm*26mm(L*W*H)
Light weight : ≤370g
High efficiency：91%(@Input 230VAC,Output5.0V/80A)
Small Leakage current：<0.5mA
Output voltage can be adjusted from 4.6V to 5.0V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rating, referring to fig. 1)
Wide Input voltage range：180VAC～264VAC ;Rated nominal voltage: 200VAC~240VAC
Power factor： ≥0.95
Compliance with CCC、CE、FCC certifications
