HWT-503V8F-2S-PP
HWT-503V8F-2S-PP
Category:

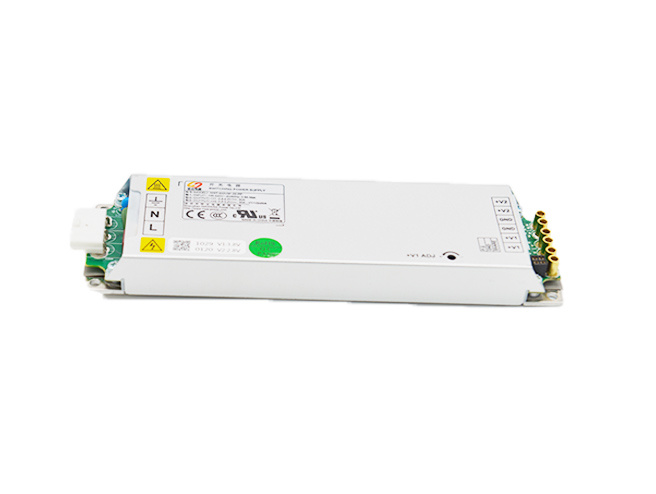

HWT-503V8F-2S-PP is an ultra-thin power supply specially designed for LED display products, with rated output Outgoing V1: 3.8V/25A, V2: 2.8V/25A. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
+V1 has the current sharing function, +V2 has the parallel function, the total power balance of
multiple machines can be realized through the current sharing bus
The power supply has a Power Good signal which can be used to detect the operating status of
the power supply
Small size：186mm*55mm*19mm(L*W*H)
Light weight : ≤320g
High efficiency：88%(@Input: 230VAC, Outputs: V1：3.8V/25A、V2：2.8V/25A )
The maximum output current is 50A for V1, 50A for V2, and 50A for V1+V2
The output fixed +V1:3.8V, +V2:2.8V, V1+V2 current can meet 30A+30A
Small Leakage current：1mA
Output voltage +V1 can be adjusted from 3.8V to 4.3V
Output voltage +V2 can be adjusted from 2.8V to 3.2V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rated)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with CE ,CB,CCC,ULcertifications
