HWA805V0FE-SS
HWA805V0FE-SS
Category:
HWA805V0FE-SS is a High-efficiency power supply with a rated output of 5.0V / 80 A, designed for LED display products. The power supply has a current sharing function and can be used in parallel. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status of the power supply

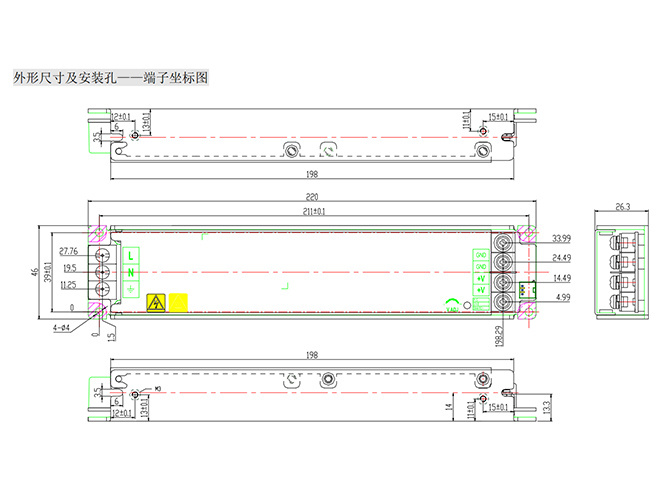

Small size：220mm*46mm*26mm(L*W*H)
Light weight : ≤470g
High efficiency：90%(@Input 230VAC,Output5.0V/80A)
Small Leakage current：<1mA
Output voltage can be adjusted from 4.6V to 5.0V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50 ℃~ +70℃ linear de-rating)
Wide Input voltage range：90VAC～264VAC(90VAC~176VAC derate to 50% )
Power factor： ≥0.95
Compliance with CE,CCC certifications
