HWT13-403V8F-2S
HWT13-403V8F-2S
Category:

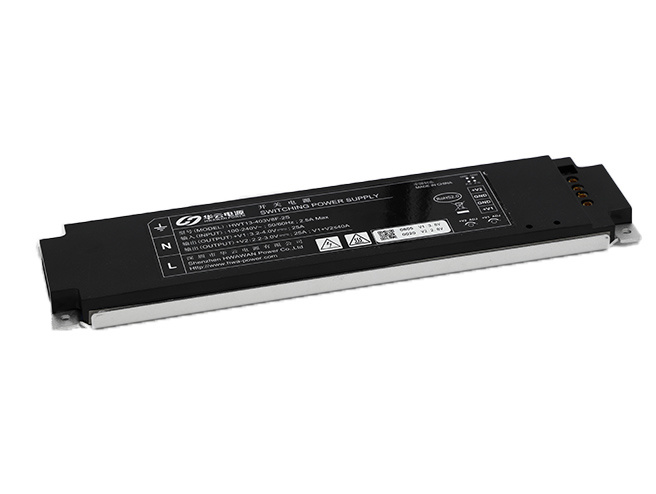

HWT13-403V8F-2S is a High-efficiency power supply with dual outputs,Rated output:3.8V/20A, 2.8V/20A,designed for LED display products. The power supply has a current sharing function and can be used in parallel. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS

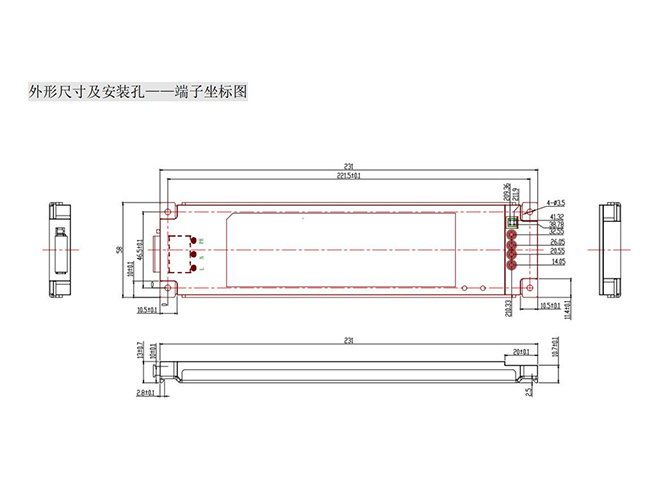

Small size：231mm*58mm*13mm(L*W*H)
Light weight : ≤270g
High efficiency：86%
Small Leakage current：<0.5mA
Output voltage +V1 can be adjusted from 3.2V to 4.0V
Output voltage +V2 can be adjusted from 2.2V to 3.0V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-30～+70℃(+50℃ ~ +70℃ linear de-rated, referring to fig. 1)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
