HWT-405V0F-SS
HWT-405V0F-SS
Category:

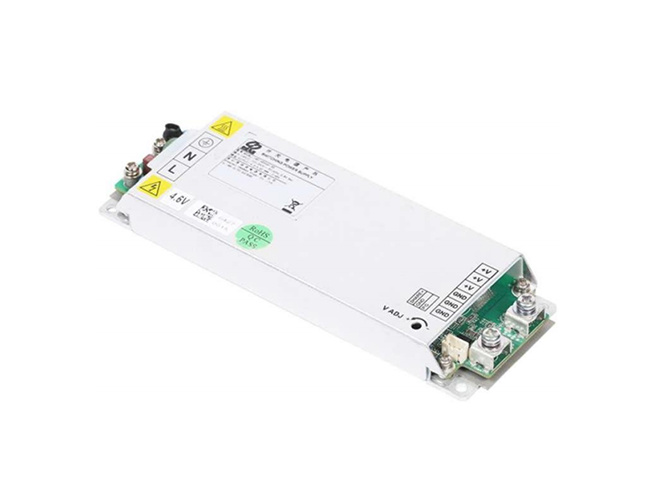

HWT-405V0F-SS is a High-efficiency power supply with a rated output of 5.0V / 40 A, designed for LED display products. The power supply has a current sharing function and can be used in parallel. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status of
the power supply

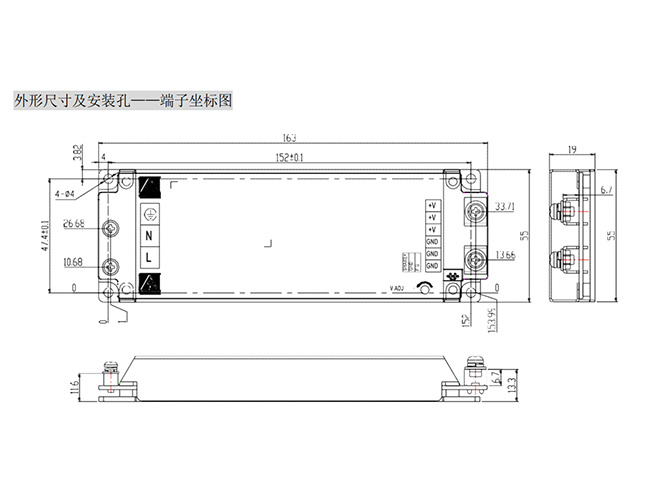

Small size：163mm*55mm*19mm(L*W*H)
Light weight : ≤270g
High efficiency：90%(@Input 230VAC,Output 5.0V/40A)
Small Leakage current：<1mA
Output voltage can be adjusted from 4.6V to 5.0V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ℃~ +70℃ linear de-rating)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.94
Compliance with UL, CE, CCC, FCC, ETL certifications
