HWT-454V2F
HWT-454V2F
Category:

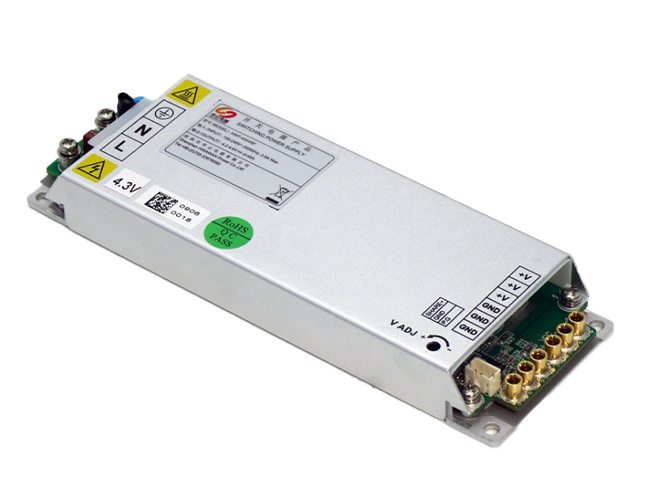

HWT-454V2F is specially designed for LED display products, with output Flow function, AC/DC power supply product that can be used in parallel, with rated output of 4.2V/45A. This electricity The source has the following characteristics:
Download Product Information
CUSTOM
DETAILS

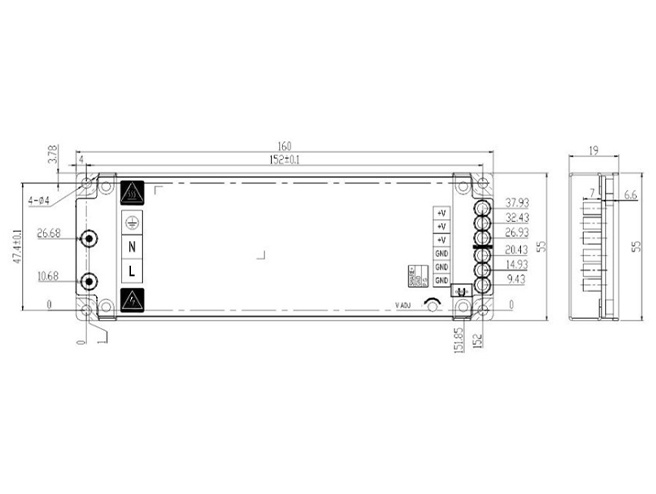

Small overall dimension: 160mm * 55mm * 19mm (L * W * H)
Light weight: ≤ 270g
High efficiency: 90% (@ 220VAC input, 4.2V/45A output)
Low leakage current: ＜ 1mA
The output voltage is adjustable from 3.8V to 4.2V
Conducted and radiated interference: EN55032 CLASS A
Wide working temperature range: - 40 ℃~+70 ℃ (+50 ℃~+70 ℃ linear derating, refer to the derating curve (Figure 1))
Input voltage range: 90VAC~264VAC
Power factor correction ≥ 0.94
E-commerce, CB, FCC, ETL, CCC, UL
