HWA604V3FE-SS
HWA604V3FE-SS
Category:
HWA604V3FE-SS is specially designed for LED display products with output current sharing function, AC/DC power supply products that can be used in parallel, with rated output of 3.8V/60A. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status of the power supply

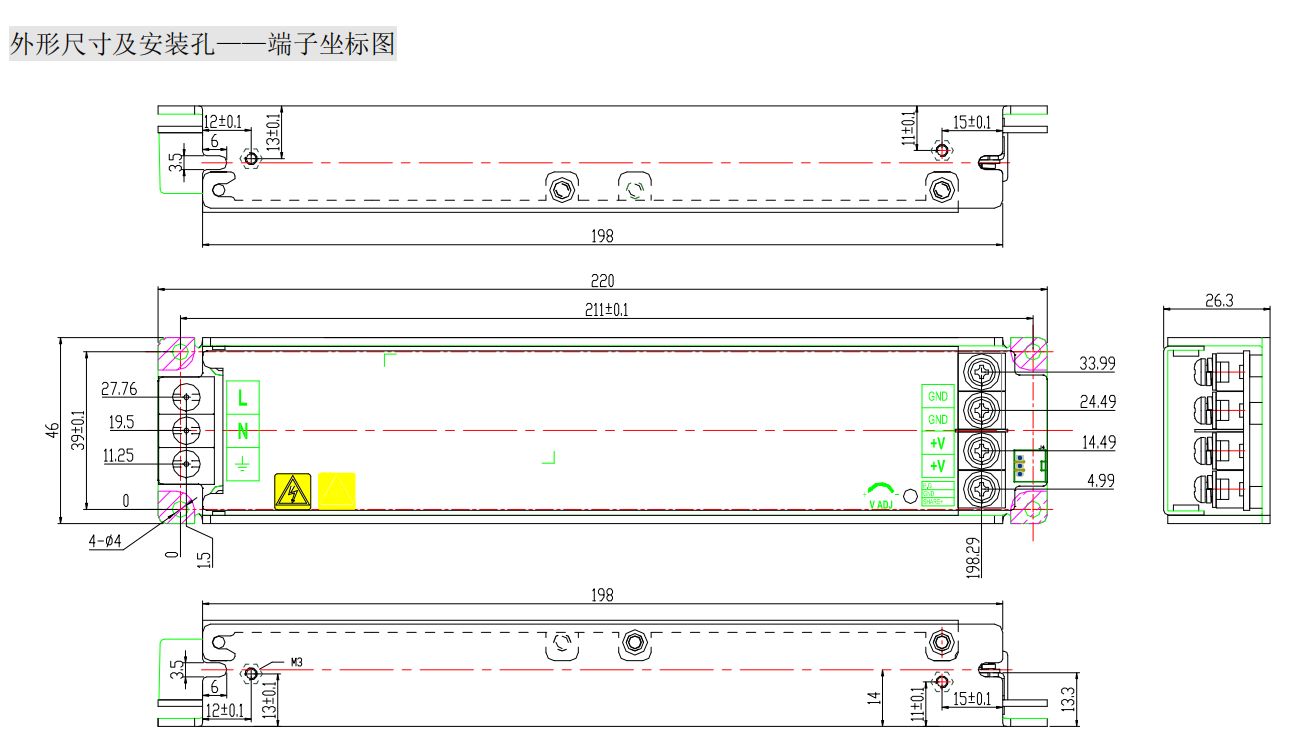

Small size：220mm*46mm*26mm(L*W*H) Light weight : ≤470g
High efficiency：90%(@230VAC input, 4.3V / 60A output)
Small Leakage current：＜1mA
Output voltage can be adjusted from 3.8V to 4.3V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40~+70C(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC~264VAC
Power factor： ≥0.94
Compliance with CE, CCC certifications
