HWA604V3FD-SS
HWA604V3FD-SS
Category:
HWA604V3FD-SS is a High-efficiency power supply with a rated output of 4.3V / 60A, designed for LED display products. The power supply has a current sharing function and can be used in parallel. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status of the power supply

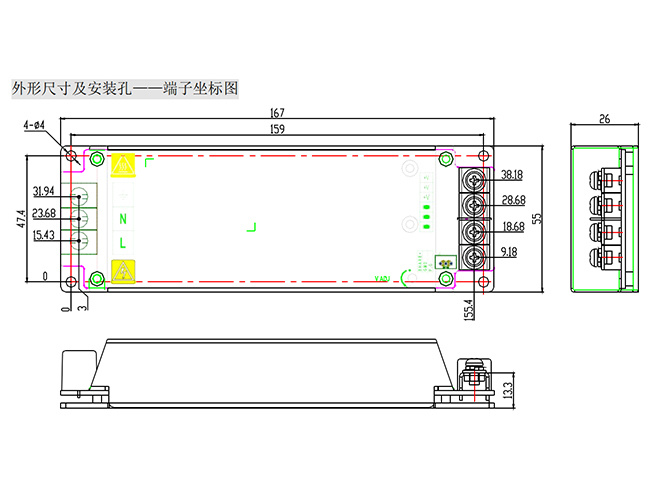

Small size：167mm*55mm*26mm(L*W*H) Light weight : ≤350g
High efficiency：91.6%Max
Small Leakage current：＜1mA
Output voltage can be adjusted from 3.8V to 4.3V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40~+70C(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC~264VAC
Power factor： ≥0.94
Compliance with UL, CE, CCC, FCC ,CB certifications
