HWA300-5V0A
HWA300-5V0A
Category:

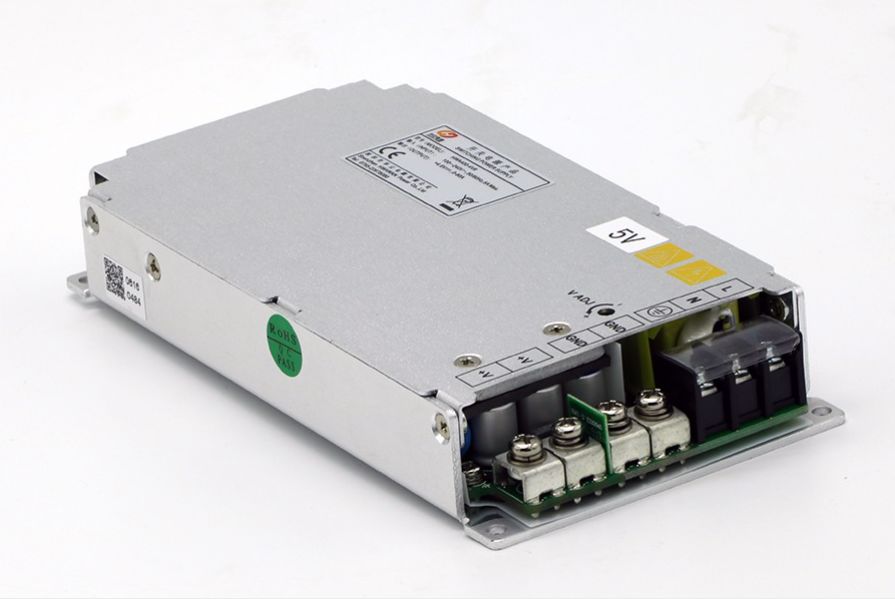

HWA300-5V0A is an AC/DC power supply product specially designed for LED display products, with a rated output of 5.0V/60A. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS

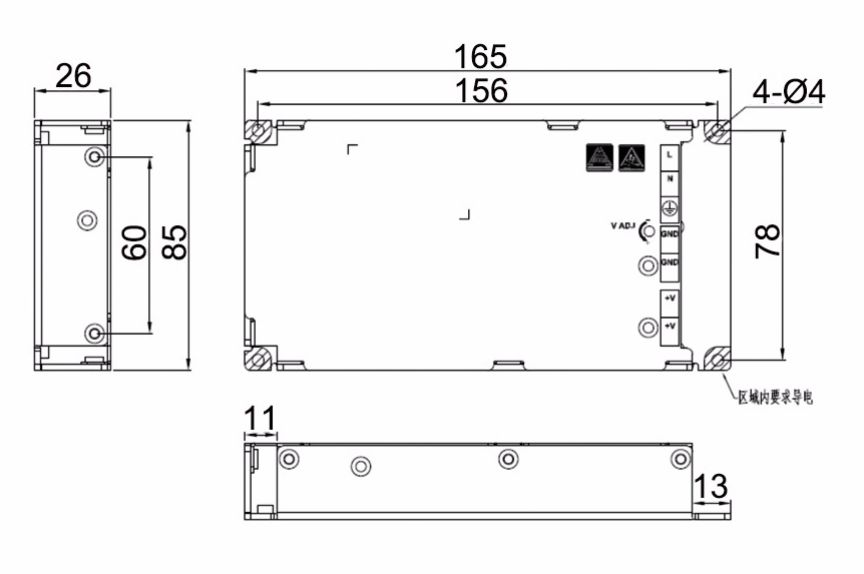

Small size：165mm*85mm*26mm(L*W*H)
Light weight : ≤550g
High efficiency：89%(Test condition: Output 5.0V / 40-60A, input 220VAC)
Small Leakage current：<1mA
Output voltage can be adjusted from 4.6V to 5.0V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-25~ + 80℃ (housing temperature)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with CE certifications
