HWA804V3E-SS
HWA804V3E-SS
Category:

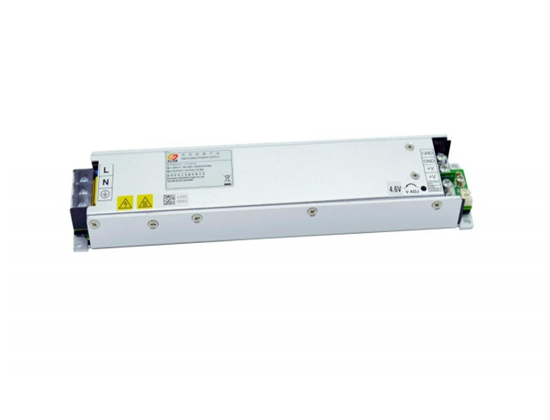

HWA804V3E-SS is designed for LED display products and can be used in parallel AC/DC power supply product with rated output of 4.3 V/80A. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
Small size：220mm*46mm*26mm(L*W*H)
Light weight : ≤470g
High efficiency：90%(@Input 230VAC,Output4.3V/80A)
Small Leakage current：<1mA
Output voltage can be adjusted from 3.8V to 4.3V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50 ℃~ +70℃ linear de-rating)
Wide Input voltage range：90VAC～264VAC(90VAC~176VAC derate to 50% )
Power factor： ≥0.95
Compliance with CE,CCC certifications
