HWA804V3FC1-SP
HWA804V3FC1-SP
Category:
HWA804V3FC1-SP is specially designed for LED display products with output current sharing function, AC/DC power supply products that can be used in parallel, with rated output of 4.3V/80A. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS
The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status of the
power supply

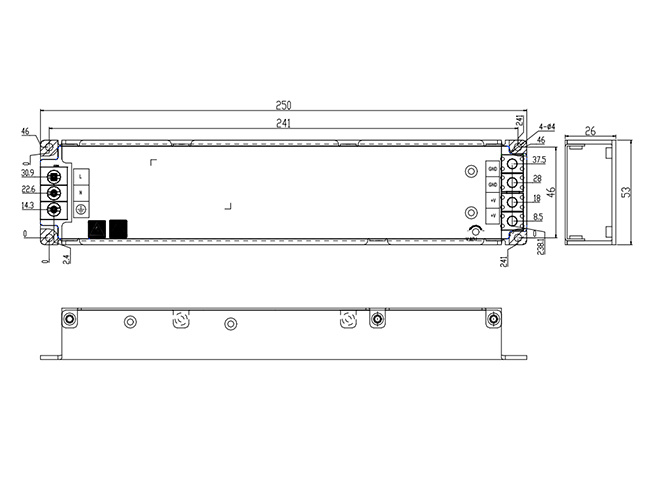

Small size：260mm*46mm*26mm(L*W*H) Light weight : ≤510g
High efficiency：90%(@Input 230VAC,Output4.3V/80A)
Small Leakage current：<1mA
Output voltage can be adjusted from 3.8V to 4.3V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50 ℃~ +70℃ linear de-rating)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with UL, CE, CB, FCC certifications
