PRODUCTS
HWA805V0C
HWA805V0C
Category:
HWA805V0C is a High-efficiency power supply with a rated output of 5.0V / 80 A, designed for LED display products. The power supply has the following characteristics:
Download Product Information
CUSTOM
DETAILS

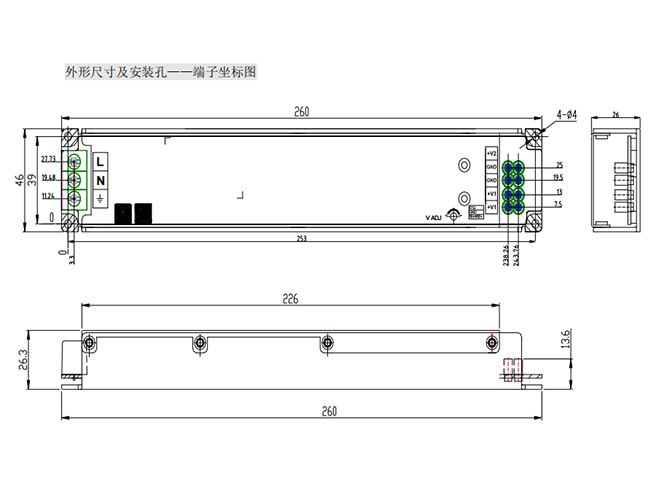

Small size：246mm*46mm*26mm(L*W*H)
Light weight : ≤510g
High efficiency：92%(@Input 220VAC,Output5.0V/80A)
Small Leakage current：< 1mA
Output voltage can be adjusted from 4.6V to 5.0V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40~+70C(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC~264VAC
Power factor： ≥0.95
Compliance with UL, CE, FCC,CB certifications
