HWA603V8D-2S-SS
HWA603V8D-2S-SS
Category:

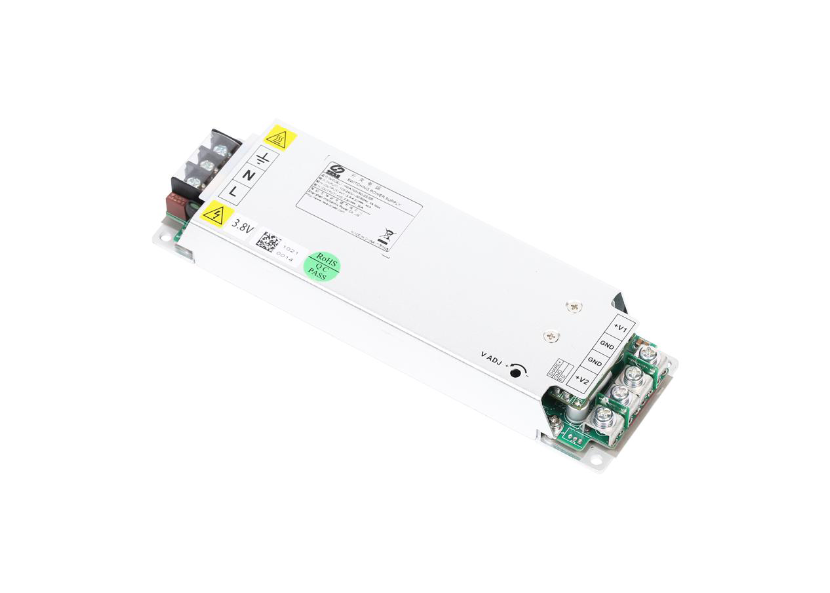

HWA603V8D-2S-SS is an AC/DC dual output power supply product designed for LED display products, Rated output:+V1: 3.8V/40A Max,+V2: 2.8V/30A Max, V1+V2 ≤ 60A This power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS
Small size：185mm*55mm*26mm(L*W*H)
Light weight : ≤450g
High efficiency：91%
Small Leakage current：<1mA
Output voltage +V1 can be adjusted from 3.8V to 4.3V
Output voltage +V2 can be adjusted from 2.8V to 3.2V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50℃ ~ +70℃ linear de-rated)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with UL、CE、CCC、FCC certifications
