HWA703V8FD-2S-SS
HWA703V8FD-2S-SS
Category:

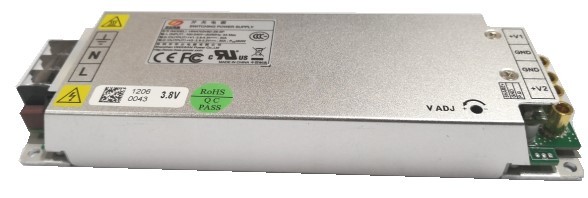

HWA703V8FD-2S-SS is a High-efficiency power supply with dual outputs,Rated output:+V1:3.8V/40A, +V2:2.8V/30A,designed for LED display products. The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS
Small size：185mm*55mm*26mm(L*W*H)
Light weight : ≤450g
High efficiency：90%Max
Small Leakage current：1mA
Output voltage +V1 range:3.8V~4.3V
Output voltage +V2 range :2.8V~ 3.2V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rated)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Compliance with UL, CE, CCC, FCC,CB certifications
