HWA903V8-2S-SS
HWA903V8-2S-SS
Category:

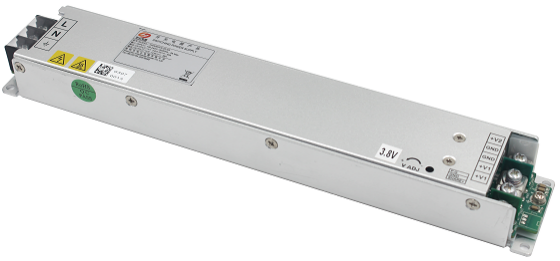

HWA903V8-2S-SS is a High-efficiency power supply with dual outputs designed for LED display products. Rated output is 4.3V/55A and 3.2V/35A.The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS

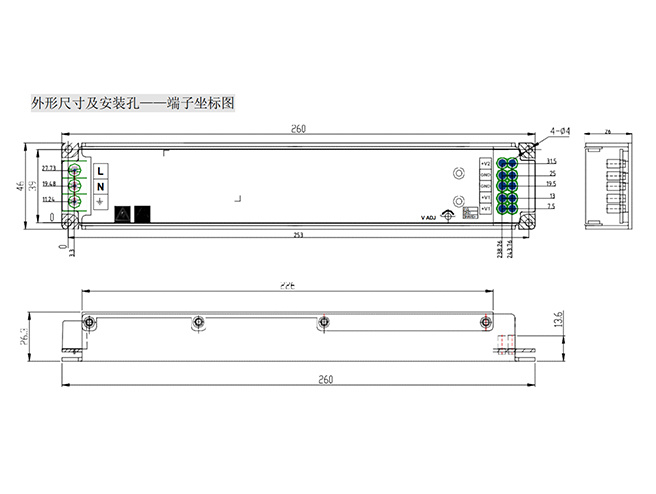

Small size：260mm*46mm*26.3mm(L*W*H)
Light weight : ≤550g
High efficiency：89%(@Input: 220VAC)
Small Leakage current：<1mA
Output voltage +V1 can be adjusted from 3.8V to 4.3V
Output voltage +V2 can be adjusted from 2.8V to 3.2V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50℃ ~ +70℃ linear de-rated)
Input voltage range: 90VAC ~ 264VAC
Power factor： ≥0.95
Compliance with UL、CE、FCC 、CB certifications
