HWA1003V8C-2S-SS
HWA1003V8C-2S-SS
Category:

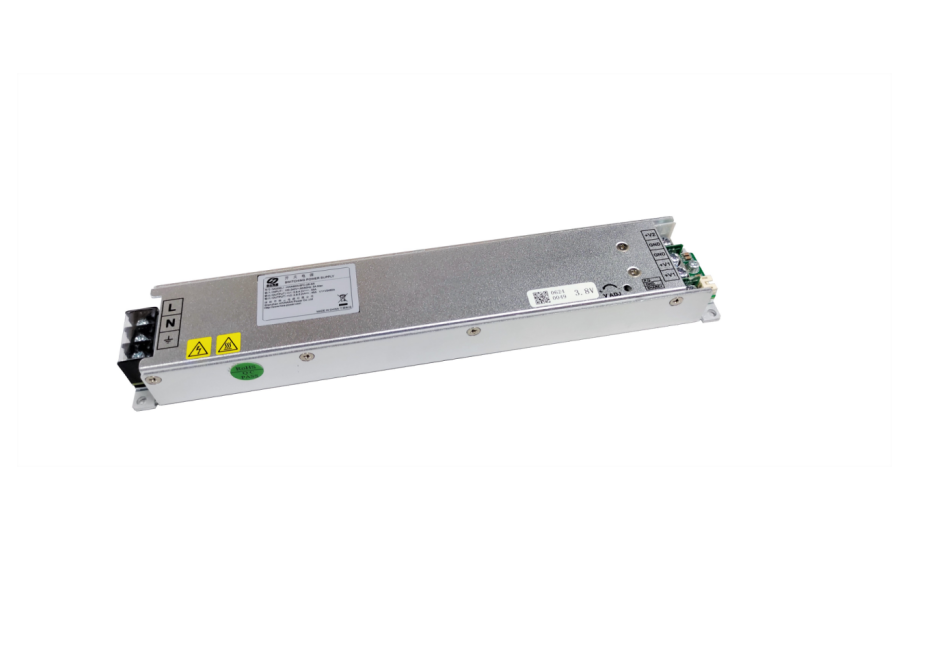

HWA1003V8C-2S-SS is a High-efficiency power supply with dual outputs,Rated output:3.8V/60A, 2.8V/40A,designed for LED display products. The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS
Small size：260mm*46mm*26.3mm(L*W*H)
Light weight : ≤570g
High efficiency：89%(@Input: 230VAC, Outputs: full load )
Small Leakage current：<1mA
Output voltage +V1 can be adjusted from 3.8V to 4.3V
Output voltage +V2 can be adjusted from 2.8V to 3.2V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50℃ ~ +70℃ linear de-rated)
Wide Input voltage range：100VAC～240VAC
Power factor： ≥0.95
Compliance with UL、CE certifications
