HWD12V10A9-36
HWD12V10A9-36
Category:
HWD12V10A9-36 is a wide-input voltage non-insulated DC-DC power supply product with rated output 12V/10A。 The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS
High efficiency: 95% (test condition: output 12V/10A, input 24V)

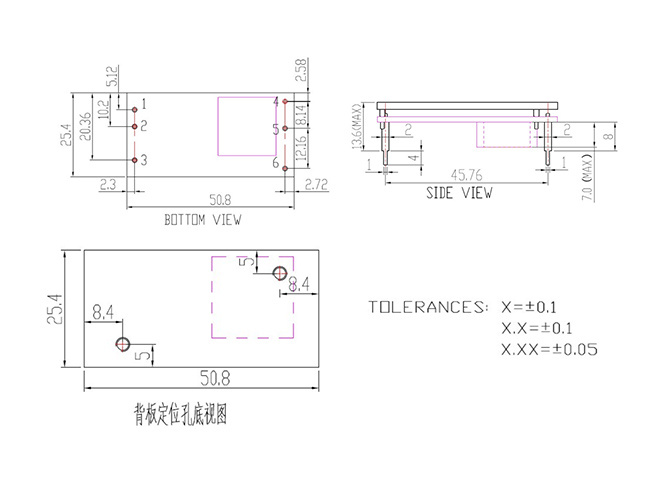

Small overall dimension: 50.8mm * 25.4mm * 13.6mm (L * W * H)
Light weight: ≤ 50g
Wide operating temperature range: - 40~+85 ℃ (the output starts derating at 50 ℃)
Input voltage range: 9Vdc~36Vdc
