HWA804V3FC
HWA804V3FC
Category:

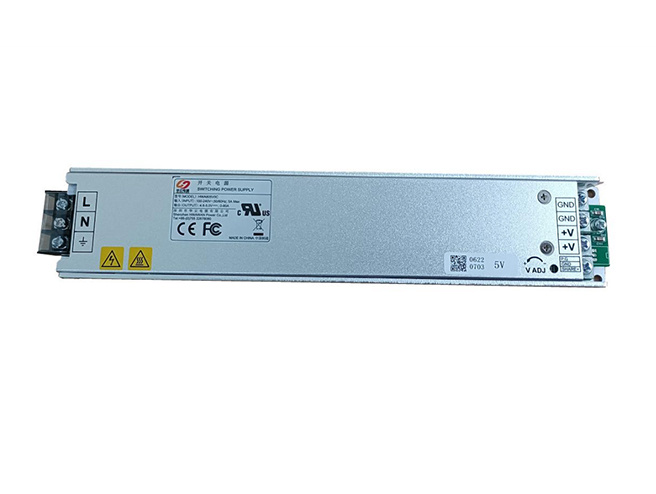

HWA804V3FC is specially designed for LED display products, with output current sharing function The rated output of AC/DC power supply products for parallel operation is 4.3V/80A. The power supply has the following characteristics
Download Product Information
CUSTOM
DETAILS
The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status of
the power supply

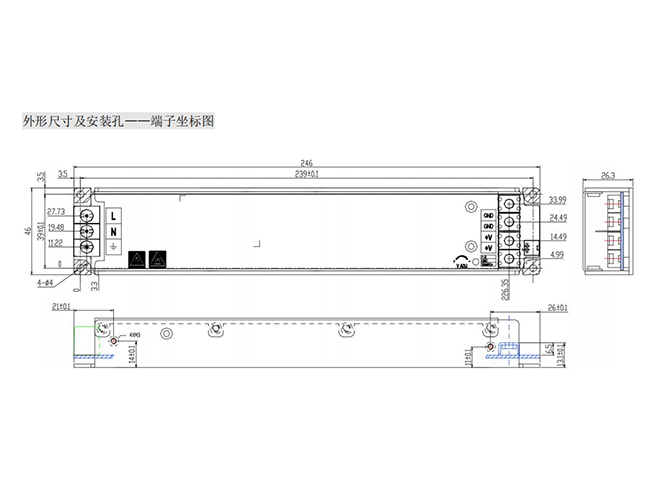

Small size：246mm*46mm*26mm(L*W*H) Light weight : ≤510g
High efficiency：92%(@Input 220VAC,Output4.3V/80A)
Small Leakage current：< 1mA
Output voltage can be adjusted from 3.8V to 4.3V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40~+70C(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC~264VAC
Power factor： ≥0.95
Compliance with UL, CE, FCC,CB certifications
