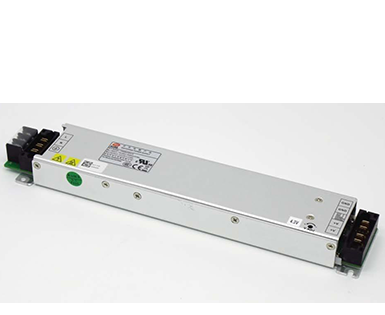

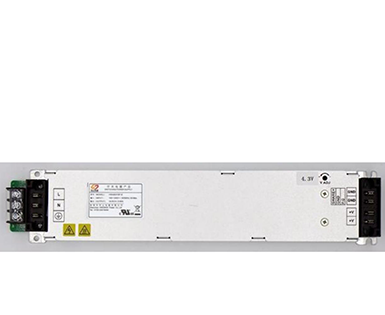

HWA804V6FA-B

Product features

With functions of output flow, through the bus current can be realized in parallel.

◆ Has the Power Good signal

◆ High reliability design, steady operation

◆ The industry's leading high power density, compact size

◆ Wide voltage range, full voltage range,full power output

◆ Power factor correction (PFC) function

◆ Wide operating temperature range, strong environmental adaptability

◆ Good electromagnetic compatibility,accord with CLASS A

◆ Without fans


Description


SpecificationsHWA804V6FA-B
Size(L×W×H,mm)284×57×26
Rated input voltage(V)AC 100~240
Input voltage range(V)AC 90~264
Output voltage range(V)DC 4.2~4.6
Output current(A)80
Output power(W)400
Efficiency90%
EMCClass A
CertificationsUL、CE、CCC

Notes:

(1)The product version may be adjusted,please specify the parameters by the specifications of the latest effective version.

(2)Maximum parallel number≤4,Please refer to the following table for the maximum output current that can be connected in parallel.

Rated   output current single(A)Paralle numberMax.output   current in parellel(A)
402152
3224
4296
